Management API

/capabilitiesRead capabilities

/openapi.jsonGet openapi

/apps/{app_name}Read an app

/apps/{app_name}Update or disable an app

/providersList shared providers

/providersCreate a shared provider

/providers/{label}Read a shared provider

/providers/{label}Update or disable a provider

/providers/{label}/testTest connection or model

/apps/{app_name}/providersList app providers

/apps/{app_name}/providers/{label}Attach a shared provider

/apps/{app_name}/providers/{label}Detach an app provider

/apps/{app_name}/provider-conversionConvert inline providers

/apps/{app_name}/keysList gateway credentials

/apps/{app_name}/keysIssue a gateway credential

/apps/{app_name}/keys/{key_id}Get key

/apps/{app_name}/keys/{key_id}Change gateway key expiry

/apps/{app_name}/keys/{key_id}Revoke a gateway credential

/apps/{app_name}/keys/{key_id}/revealReveal a gateway credential

/apps/{app_name}/promptsList prompts

/apps/{app_name}/prompts/{prompt_id}Read a prompt

/apps/{app_name}/prompts/{prompt_id}Create or replace a prompt

/apps/{app_name}/prompts/{prompt_id}Delete a prompt

/apps/{app_name}/versionsList app configuration versions

/apps/{app_name}/versions/{version_id}Read a configuration version

/apps/{app_name}/versions/{version_id}/rollbackRoll back app configuration

/smart-groupsList smart groups

/smart-groups/{group_name}Read a smart group

/custom-definitionsList custom definitions

/custom-definitions/{definition_id}Read a custom definition

/auditGet audit

/operations/{operation_id}Get operation

/operations/{operation_id}/recoverPost recover

/appRead an app (query locator)

/appUpdate or disable an app (query locator)

/app/providersList app providers (query locator)

/app/providers/{label}Attach a shared provider (query locator)

/app/providers/{label}Detach an app provider (query locator)

/app/provider-conversionConvert inline providers (query locator)

/app/keysList gateway credentials (query locator)

/app/keysIssue a gateway credential (query locator)

/app/keys/{key_id}Get key (query locator)

/app/keys/{key_id}Change gateway key expiry (query locator)

/app/keys/{key_id}Revoke a gateway credential (query locator)

/app/keys/{key_id}/revealReveal a gateway credential (query locator)

/app/promptsList prompts (query locator)

/app/prompts/{prompt_id}Read a prompt (query locator)

/app/prompts/{prompt_id}Create or replace a prompt (query locator)

/app/prompts/{prompt_id}Delete a prompt (query locator)

/app/versionsList app configuration versions (query locator)

/app/versions/{version_id}Read a configuration version (query locator)

/app/versions/{version_id}/rollbackRoll back app configuration (query locator)

/admin/tenants/{tenant_id}/settingsRead tenant management settings

/admin/tenants/{tenant_id}/settingsEnable or suspend tenant management

/admin/tenants/{tenant_id}/keysList management keys

/admin/tenants/{tenant_id}/keysIssue a management key

/admin/tenants/{tenant_id}/keys/{key_id}Update a management key

/admin/tenants/{tenant_id}/keys/{key_id}Revoke a management key

Continue

Start with the end-to-end example, inspect the full app configuration schema, or review errors, concurrency and retry semantics. Download the OpenAPI 3.1 reference for all operations and input schemas.

Quick start

This workflow checks access, creates a shared provider, creates an app, reads it, then disables it without losing configuration.

1. Prepare access

Management requests go to the management origin: the central QuilrAI service for your organization, not the regional inference URLs such as guardrails-usa-2.quilr.ai. Regional gateway nodes reject management requests with 503 central_service_required.

Deployment	Where the management origin comes from
QuilrAI cloud (SaaS)	The console does not show it. Ask your QuilrAI representative for your organization's management origin.
Self-hosted	The URL of your central gateway service (the one without regional node settings). Your platform team knows it.

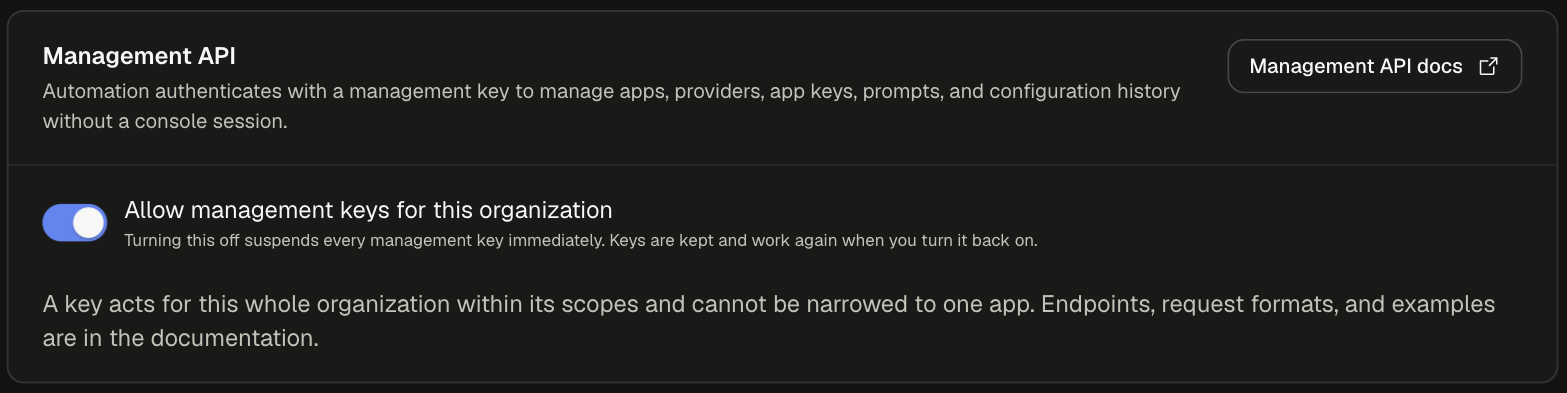

In the console, turn on Allow management keys for this organization and issue a key (see Enable in the console). For this workflow, the key needs read, providers:write, config:write and credentials:write.

export MANAGEMENT_ORIGIN='<management-origin>'   # from the table above, e.g. https://...
export MANAGEMENT_KEY='<management-key>'
export PROVIDER_API_KEY='<provider-api-key>'

Keep secrets in your automation secret store. These example values are placeholders, not live credentials.

Check the origin and key with a read-only call. It changes nothing and needs only the read scope:

curl --fail-with-body \
  "$MANAGEMENT_ORIGIN/llmgateway/management/v1/capabilities" \
  --header "Authorization: Bearer $MANAGEMENT_KEY"

A 200 response lists scopes, provider_types, app_fields and writes_available. If it fails:

Response	Meaning
`401 invalid_management_key`	The key is missing, wrong, expired or revoked.
`403 insufficient_scope`	The key lacks `read`.
`403 management_disabled_for_tenant`	Allow management keys for this organization is off.
`404`	Management is not enabled on this service, or the origin or path is wrong.
`503 central_service_required`	You called a regional gateway node. Use the management origin.

2. Create a shared provider

curl --request POST \
  "$MANAGEMENT_ORIGIN/llmgateway/management/v1/providers" \
  --header "Authorization: Bearer $MANAGEMENT_KEY" \
  --header 'Content-Type: application/json' \
  --header 'Idempotency-Key: support-provider-001' \
  --data "{\"label\":\"Production OpenAI\",\"provider_name\":\"openai\",\"provider_settings\":{\"api_key\":\"$PROVIDER_API_KEY\"},\"selected_models\":[\"gpt-4.1-mini\"]}"

A 201 response returns provider metadata with credential_configured and an opaque version. Saving does not contact the provider. Use explicit testing when you want to verify connectivity or model access.

3. Create an app

curl --request POST \
  "$MANAGEMENT_ORIGIN/llmgateway/management/v1/apps" \
  --header "Authorization: Bearer $MANAGEMENT_KEY" \
  --header 'Content-Type: application/json' \
  --header 'Idempotency-Key: support-app-001' \
  --data '{
    "name": "Support Bot",
    "provider_labels": ["Production OpenAI"],
    "tags": ["production", "support"]
  }'

Abbreviated creation response; additional stored-setting sections and metadata may be present:

{
  "app": {
    "name": "Support Bot",
    "mode": "gateway",
    "enabled": true,
    "version": "app-v1",
    "provider_labels": ["Production OpenAI"],
    "tags": ["production", "support"],
    "policy_authority": {"enabled": false, "active_revision": null, "active_checksum": null}
  },
  "key": {
    "key_id": "key_example",
    "name": "Default",
    "secret": "<new-gateway-key>",
    "status": "active",
    "expires_at": null
  },
  "warnings": [],
  "operation_id": "operation_example",
  "request_id": "req_example"
}

The initial key is issued even when initial_key is omitted. Use the gateway credential for runtime calls. Keep using the management credential for configuration.

New apps under QuilrQL

When tenant-wide QuilrQL authority is already enabled, app creation captures the app baseline and can publish an app-specific allowed-models default for all app users. Finite configured model lists receive this default; unrestricted providers and SDK/Copilot Studio apps do not get a finite model list. Matching tenant policies, including explicit model denials, still apply. Creation does not enable authority or change existing drafts. See QuilrQL behavior.

4. Read the current version

curl --include \
  "$MANAGEMENT_ORIGIN/llmgateway/management/v1/apps/Support%20Bot" \
  --header "Authorization: Bearer $MANAGEMENT_KEY"

Use the returned ETag in updates. The example below assumes it is "app-v1"; use the actual value from your read.

5. Disable and re-enable

curl --request PATCH \
  "$MANAGEMENT_ORIGIN/llmgateway/management/v1/apps/Support%20Bot" \
  --header "Authorization: Bearer $MANAGEMENT_KEY" \
  --header 'Content-Type: application/json' \
  --header 'If-Match: "app-v1"' \
  --data '{"enabled":false}'

This preserves the app, prompts, provider references and keys. After a gateway observes the change, newly admitted traffic is rejected for all app authentication modes. Existing requests finish normally.

To re-enable, read the latest ETag and PATCH {"enabled":true}. Keys that expired or were revoked while the app was disabled remain invalid. Propagation is asynchronous; the API does not promise an instantaneous global kill switch.

Next steps

Task	Reference
Add another shared provider	Attach a provider
Configure guardrails, routing or limits	Full configuration input
Issue a separate automation key	Gateway credentials
Understand new-app policy defaults	QuilrQL behavior
Add a system prompt	Prompt Store

Authentication and management keys

Two gates enable access: the deployment switch and tenant opt-in. Every management key belongs to exactly one tenant; one tenant can have multiple keys for independent automation clients.

Request authentication

Authorization: Bearer <management-key>

The key establishes the tenant. Caller-supplied tenant headers cannot expand that scope. Gateway inference keys, log-export credentials and management keys are not interchangeable.

Credential	Purpose	Secret retrieval
Management key	Read/write authorized tenant configuration.	Issuance only; cannot reveal it later.
Gateway app key	Runtime access to one canonical gateway app.	Explicit reveal with `credentials:read`.
Verified administrator identity	Opt in a tenant; create, change or revoke management keys.	Follows the administration identity provider.

Enablement and lifecycle

Self-hosted only: management is on by default on the central service. Setting LLMGATEWAY_MANAGEMENT_API_ENABLED=false turns it off.
An authorized administrator enables management for the tenant.

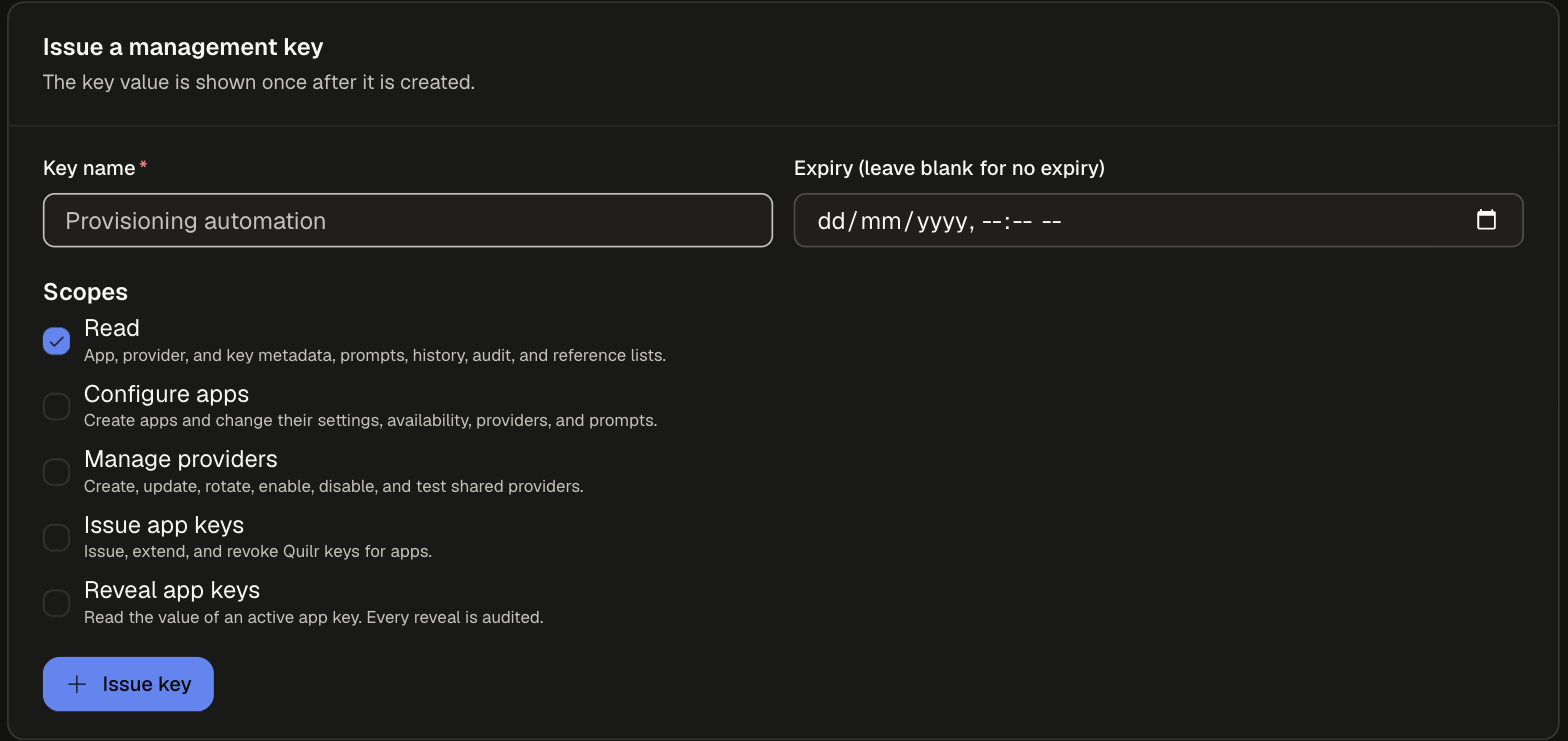

The administrator creates a named key with explicit scopes and, optionally, an expiry.
Store the returned secret. Issue a replacement key before revoking a key used by an existing integration.

Disabling tenant management suspends its keys. Re-enabling restores keys that remain unexpired and unrevoked. This does not enable/disable gateway apps. Tenant admins may continue to inspect enablement and revoke keys while tenant management is suspended, provided the deployment gate is enabled.

Management keys do not expire by default. expires_at is a future RFC 3339 timestamp or null. On PATCH, omission preserves the current expiry and null clears it. Expired and revoked keys are terminal: issue a new key instead of resurrecting one.

Scopes

All scopes listed for an operation are required. No scope implies another.

Scope	Grants
`read`	Capabilities/OpenAPI, app/provider/key metadata, prompts, configuration history, management audit, existing groups/definitions and operation status.
`config:write`	App create/update/enable/disable, provider attachments/conversion, app controls, prompt changes eligible app rollback and configuration recovery.
`providers:write`	Shared-provider create/update/enable/disable, credential rotation and explicit upstream tests.
`credentials:write`	Issue/revoke gateway app keys and change supported expiry.
`credentials:read`	Explicitly reveal a retained gateway app credential.

App creation requires both config:write and credentials:write because it issues an initial gateway credential. Attaching an existing provider needs config:write; changing that shared provider needs providers:write.

Policy scopes (policy:write, policy:publish) and app-restricted management keys are Not Generally Available. The five scopes above are the accepted scopes and apply tenant-wide.

Administration boundary

The /llmgateway/management-admin/v1 routes require Authorization: Bearer <Quilr tenant-admin JWT>. The verified JWT must include the selected tenant in tenantIds, an Admin or Super Admin role, and an identifying sub, userId or email. Tenant headers alone do not authorize access. A management key cannot grant itself permissions or enable its tenant.

GET/PATCH tenant settings controls { "enabled": true }. GET/POST tenant keys lists metadata or creates a management key. PATCH/DELETE a key changes its name/scopes/expiry or revokes it. Dedicated rotation and per-key pause/resume are Not Generally Available; issue a replacement and then revoke the old key.

Lists return each key's version, status, creator, creation/expiry/revocation times and last_used_at. Use the quoted version as If-Match for editing or revoking that key. Management-key timestamps are Unix seconds, potentially fractional; request expires_at values use RFC 3339. List responses never include the secret. Later management-secret retrieval is Not Generally Available; retain the issuance response.

Key creation requires Idempotency-Key. The same administrator can replay the completed issuance response, including its secret, for 24 hours using the same key and payload. After that window, the token cannot create another key. See retry and recovery.

GET/admin/tenants/{tenant_id}/settings

Read tenant management settings

Tenant-admin JWT. PATCH requires the settings ETag. Suspending management preserves keys; unexpired/unrevoked keys resume on re-enablement.

REQUIRESVerified tenant administrator

Path, query & header parameters 1

tenant_id (path)stringrequired

No request body.

curl --request GET \
  'https://management.example.com/llmgateway/management-admin/v1/tenants/tenant_example/settings' \
  --header 'Authorization: Bearer <verified-admin-token>'

PATCH/admin/tenants/{tenant_id}/settings

Enable or suspend tenant management

Tenant-admin JWT. PATCH requires the settings ETag. Suspending management preserves keys; unexpired/unrevoked keys resume on re-enablement.

REQUIRESVerified tenant administrator

Path, query & header parameters 2

tenant_id (path)stringrequired

If-Match (header)stringrequired

Quoted ETag returned by the latest resource read. Prompt/attachment/rollback writes use the app ETag.

Full request body specification application/json

enabledbooleanrequired

Unknown fields are rejected in this object.

curl --request PATCH \
  'https://management.example.com/llmgateway/management-admin/v1/tenants/tenant_example/settings' \
  --header 'Authorization: Bearer <verified-admin-token>' \
  --header 'If-Match: "resource-version-from-read"' \
  --header 'Content-Type: application/json' \
  --data '{
  "enabled": true
}'

GET/admin/tenants/{tenant_id}/keys

List management keys

Tenant-admin JWT. Creation requires tenant opt-in and returns the secret; lists return metadata including version. Issuance replay is available for 24 hours to the same admin and idempotency key.

REQUIRESVerified tenant administrator

Path, query & header parameters 3

tenant_id (path)stringrequired

limit (query)integeroptional

min: 1max: 200default: 50

cursor (query)stringoptional

No request body.

curl --request GET \
  'https://management.example.com/llmgateway/management-admin/v1/tenants/tenant_example/keys?limit=50' \
  --header 'Authorization: Bearer <verified-admin-token>'

POST/admin/tenants/{tenant_id}/keys

Issue a management key

Tenant-admin JWT. Creation requires tenant opt-in and returns the secret; lists return metadata including version. Issuance replay is available for 24 hours to the same admin and idempotency key.

REQUIRESVerified tenant administrator

Path, query & header parameters 2

tenant_id (path)stringrequired

Idempotency-Key (header)stringrequired

min length: 1max length: 200

Full request body specification application/json

namestringrequired

min length: 1max length: 200

expires_atstring | nulloptional

format: date-time

scopesarray<string>required

min items: 1

Array item specification

string

Values: "config:write""credentials:read""credentials:write""providers:write""read"

Unknown fields are rejected in this object.

curl --request POST \
  'https://management.example.com/llmgateway/management-admin/v1/tenants/tenant_example/keys' \
  --header 'Authorization: Bearer <verified-admin-token>' \
  --header 'Idempotency-Key: unique-operation-001' \
  --header 'Content-Type: application/json' \
  --data '{
  "name": "Deployment automation",
  "scopes": [
    "read",
    "config:write",
    "providers:write",
    "credentials:write"
  ],
  "expires_at": null
}'

PATCH/admin/tenants/{tenant_id}/keys/{key_id}

Update a management key

Use key.version from the list as a quoted If-Match. PATCH changes name/scopes/expiry. DELETE revokes and returns key metadata. Expired/revoked keys cannot be edited.

REQUIRESVerified tenant administrator

Path, query & header parameters 3

tenant_id (path)stringrequired

key_id (path)stringrequired

If-Match (header)stringrequired

Quoted ETag returned by the latest resource read. Prompt/attachment/rollback writes use the app ETag.

Full request body specification application/json

namestringoptional

min length: 1max length: 200

expires_atstring | nulloptional

format: date-time

scopesarray<string>optional

min items: 1

Array item specification

string

Values: "config:write""credentials:read""credentials:write""providers:write""read"

Unknown fields are rejected in this object.

curl --request PATCH \
  'https://management.example.com/llmgateway/management-admin/v1/tenants/tenant_example/keys/key_example' \
  --header 'Authorization: Bearer <verified-admin-token>' \
  --header 'If-Match: "resource-version-from-read"' \
  --header 'Content-Type: application/json' \
  --data '{
  "name": "Production automation",
  "scopes": [
    "read",
    "config:write"
  ]
}'

DELETE/admin/tenants/{tenant_id}/keys/{key_id}

Revoke a management key

Use key.version from the list as a quoted If-Match. PATCH changes name/scopes/expiry. DELETE revokes and returns key metadata. Expired/revoked keys cannot be edited.

REQUIRESVerified tenant administrator

Path, query & header parameters 3

tenant_id (path)stringrequired

key_id (path)stringrequired

If-Match (header)stringrequired

Quoted ETag returned by the latest resource read. Prompt/attachment/rollback writes use the app ETag.

Full request body specification application/json

Unknown fields are rejected in this object.

curl --request DELETE \
  'https://management.example.com/llmgateway/management-admin/v1/tenants/tenant_example/keys/key_example' \
  --header 'Authorization: Bearer <verified-admin-token>' \
  --header 'If-Match: "resource-version-from-read"' \
  --header 'Content-Type: application/json' \
  --data '{}'

API conventions and errors

Enablement and authentication

Management v1 runs on the central service. Self-hosted operators can turn it off with LLMGATEWAY_MANAGEMENT_API_ENABLED=false (it defaults on); both route families then return 404. Deployments using CLICKHOUSE_MASTER_URL reject management with 503 central_service_required.

Resource routes use /llmgateway/management/v1 and Authorization: Bearer <qlmgmt_...>. The key establishes the tenant. Administrator routes use /llmgateway/management-admin/v1 and a verified tenant-admin JWT; see authentication.

Send JSON bodies with Content-Type: application/json. Requests are capped at 1 MiB, with a 10-second body-read timeout and 32 admitted management requests per HTTP worker. Model probes have a 20-second timeout. Secret-bearing values are omitted from ordinary reads. Responses use Cache-Control: no-store and X-Request-ID.

Names and pagination

Use URL-encoded paths for simple names. For app names containing /, % or other proxy-sensitive characters, use the /app query aliases and encode app_name once. Every app subresource supports the same alias.

Paginated lists accept limit (1-200, default 50) and cursor:

{"items": [], "next_cursor": null, "request_id": "req_example"}

There is no has_more; continue while next_cursor is non-null. A changed collection returns 409 collection_changed; restart pagination. App lists additionally support name substring, tag and enabled=true|false. Provider/group/definition/audit lists support no additional filters. App-provider attachments return an ordered provider_labels array and app version, not a paginated collection.

Versions and preconditions

Read the current resource version, then send its quoted value in If-Match. Missing preconditions return 428; stale versions return 412. Re-read and reconcile the intended change.

App updates, provider attachments/conversion, all prompt mutations and configuration rollback use the app ETag. Provider changes use the provider ETag. Gateway credential changes use the individual credential GET version. Management-key changes use key.version from the admin list. Tenant enablement changes use the settings version.

Prompt creation also requires the app ETag; If-None-Match has no create-only semantics. Lists do not return a collection ETag for editing their members.

Idempotency and recovery

App/provider/gateway-key/management-key creation and app rollback require a distinct Idempotency-Key per intended operation. Reusing it with different input returns 409. Completed responses are encrypted and replayable for 24 hours to the same principal. Expiry does not permit duplicate issuance using that token.

A timeout or 503 does not prove that nothing changed. 503 operation_pending includes error.operation_id when a configuration/creation operation remains incomplete. Configuration recovery uses /operations/{operation_id} and /operations/{operation_id}/recover with the initiating key. Creation recovery retries the original POST and token. See operation recovery.

Provider/credential PATCH and revocation, and provider conversion, have no idempotent replay contract. After a transport/storage error, read current state/version before deciding whether another mutation is needed.

Dates and response formats

Request expires_at values are future RFC 3339 timestamps with a timezone, or null. Gateway credential expiry responses also use RFC 3339. Management-key metadata, management audit, operation creation and provider-test completion times use Unix seconds, potentially fractional. Treat opaque IDs, versions and fingerprints as strings.

Capabilities fields are at the response root, including schema_version, scopes, app_fields, writes_available, policy_updates, policy_authority and model-test support. There is no wrapping capabilities object. Configuration history detail uses version_record. All ordinary JSON responses include request_id; /openapi.json returns an OpenAPI document directly.

Errors

{
  "error": {
    "code": "operation_pending",
    "message": "Creation is incomplete; retry the same Idempotency-Key to recover",
    "operation_id": "operation_example"
  },
  "request_id": "req_example"
}

Status	Meaning
`200`	Read/update/reveal, revocation, detach, prompt deletion or recovery completed.
`201`	App/provider/key or a previously missing prompt created.
`400`	Invalid fields, values or pagination.
`401`	Invalid, expired or revoked credential.
`403`	Tenant suspended or insufficient permission.
`404`	Deployment disabled or resource missing/outside tenant.
`408`	Request body read timed out.
`409`	Identity/dependency/idempotency conflict, changed collection or terminal key state.
`412`	Stale version.
`413`	Request exceeds 1 MiB.
`428`	Required `If-Match` missing.
`429`	Management concurrency limit reached.
`503`	Central service/storage unavailable or operation pending.

Deletes return JSON with 200, not 204. Provider tests return 200 with an explicit passed, failed or unsupported outcome; inspect test.code and test.configuration_version. Connection tests currently return unsupported_test_kind.

Propagation and deployment

Central writes synchronize asynchronously to gateway nodes. Whole-app disable rejects new admissions after each node observes the change; existing requests and streams finish. Management-key revocation and tenant suspension are checked against central authority on each admitted management request.

Central HTTP workers and the tenant watcher share persistent DLP_SERVER_DATA_DIR. Management authority, keys, audit and encrypted replay data are central-only; back up DATABASES/llmgateway_management.db and llmgateway_management.replay.key together. Independent replicas with independent data directories are unsupported.

Capability and schema reference

Features marked Not Generally Available in the availability table are not currently supported. The static downloadable reference adds examples to the current implemented routes. The authenticated /openapi.json endpoint returns the backend-generated contract. Use /capabilities for deployed fields/provider types and test support.

GET/capabilities

Read capabilities

Deployment support, exact app fields and supported provider/model tests. Fields are returned at the response root.

REQUIRESread

No request body.

curl --request GET \
  'https://management.example.com/llmgateway/management/v1/capabilities' \
  --header 'Authorization: Bearer <management-key>'

GET/openapi.json

Get openapi

Backend-generated OpenAPI document. This endpoint requires read; the downloaded documentation reference adds descriptions and examples.

REQUIRESread

No request body.

curl --request GET \
  'https://management.example.com/llmgateway/management/v1/openapi.json' \
  --header 'Authorization: Bearer <management-key>'
