Claims forwarding

Forward the caller's identity to a trusted MCP server. The gateway adds the signed-in person's identity to every request it forwards, so the server can apply its own per-user permissions, filtering or audit trail.

Configure it on the server

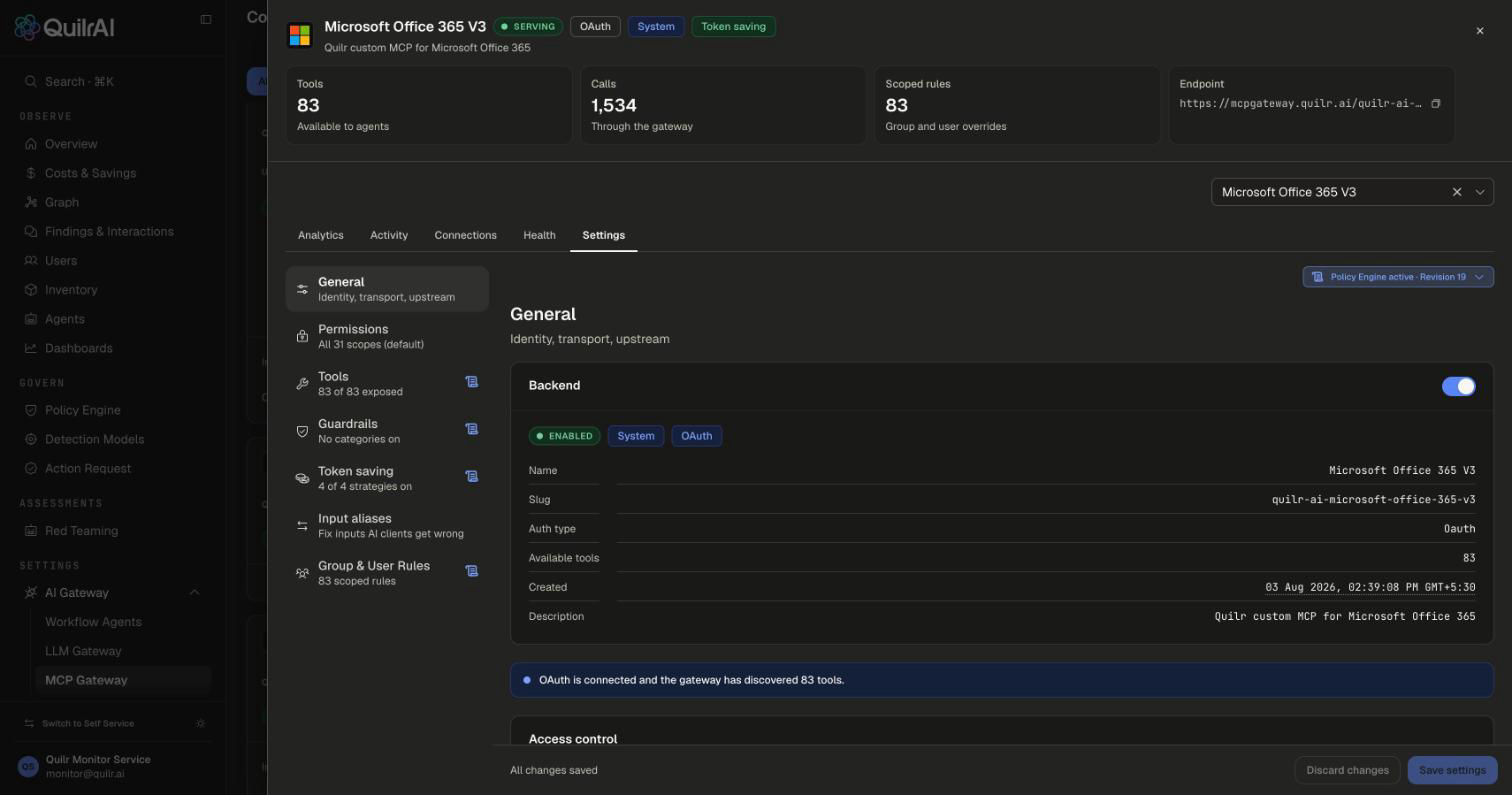

Go toQuilrAI consoleSettingsAI GatewayMCP Gatewayserver cardConfigureGeneral

Turn on Forward user claims ("Send a trusted X-User-Claims header to this MCP"). Click Save settings in the footer.

The setting is off by default. It is shown for servers that sign in with an upstream API key or no authentication. It is not shown for OAuth or OAuth passthrough servers, which already receive each person's own token, or for local packages.

What the server receives

The gateway adds an X-User-Claims header with compact JSON, on direct calls to the server and on calls routed through OneMCP:

X-User-Claims: {"v":1,"iss":"quilr-gateway","email":"user@example.com","preferred_username":"user@example.com","sub":"user_123","quilr_tenant_id":"tenant_abc","auth_method":"sso"}

Claim	Always sent	Description
v	Yes	Claims format version. Currently 1.
iss	Yes	Issuer. Always quilr-gateway.
email	Yes	The person's email, in lowercase.
preferred_username	Yes	Same as email.
sub	When available	The person's Quilr user ID.
quilr_tenant_id	When available	Your Quilr tenant ID.
auth_method	When available	How the person signed in, for example sso.
oid	When available	The person's object ID from your identity provider.
tid	When available	Your identity provider's tenant ID.
name	When available	The person's display name.

Claims with no value are left out. New claims may be added later, so check v and ignore unused claims.

Trust

• The gateway always removes any X-User-Claims header a client sends, and adds its own only after the person has passed sign-in and server access checks.
• Custom headers on the server cannot set X-User-Claims.
• The value is plain JSON, not a signed token. Make sure your server only accepts traffic from the gateway, for example over a private network, before trusting it.
• The header contains personal data. Turn it on only for servers approved to receive it.

Backend example

import json

def authenticated_user(request):
    # Only trust this header on traffic that arrived from the gateway.
    raw_claims = request.headers.get("X-User-Claims")
    if not raw_claims:
        return None

    claims = json.loads(raw_claims)
    if claims.get("v") != 1 or claims.get("iss") != "quilr-gateway":
        raise ValueError("Unsupported user claims")
    return claims

Going further with the Policy Engine

The Claims Forwarding card (stage 1, Session) in Govern > Policy Engine > MCP Gateway decides per session whether claims are forwarded, with the forward user claims effect. Edits join a shared draft and apply once you publish a revision.

Scenarios the card supports beyond the server switch:

• Forward for some people only. Match smart groups or user email, for example forward claims for employees but not for contractors.
• Forward on one route. Match route kind to forward claims on direct connections but not through OneMCP, or the reverse.
• Shape the whole session in one rule. Combine claims forwarding with the OneMCP dynamic tools and memory effects for the same group.

contractor_session_posturesession

runs on session·priority 800

WhenSmart groupsincludes (ignoring case)Contractors

Then

OneMCP dynamic tools→false

OneMCP memory→deny

forward user claims→false
