Identity & Network Trust

V2 console

This card lives in Policy Engine > LLM Gateway at web.quilr.ai/policy. Edits join the shared draft and take effect once you review and publish a revision.

Require callers to prove who they are, require a conversation ID, and limit where requests may come from. Runs at the request stage.

Sections

The card always shows the same three controls.

Section	Satisfied by	Empty state	Add button

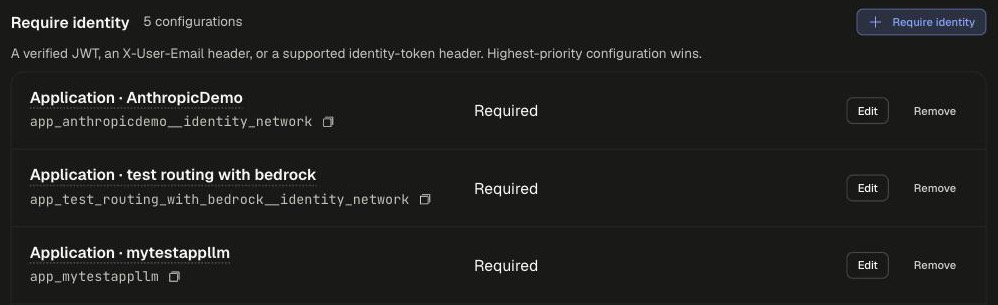

Require identity	A verified JWT, an X-User-Email header, or a supported identity-token header.	Not set: identity is not required.	Require identity

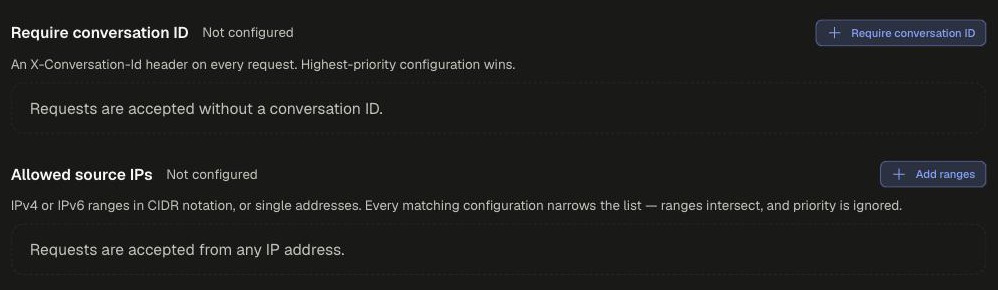

Require conversation ID	An X-Conversation-Id header on every request.	Requests are accepted without a conversation ID.	Require conversation ID
Allowed source IPs	IPv4 or IPv6 ranges in CIDR notation, or single addresses.	Requests are accepted from any IP address.	Add ranges

Settings

Every add button opens one dialog with all three requirements. The button you clicked pre-selects its own row.

Setting	Options	Default	Notes
Require identity	Not set, Required, Not required	Not set	Not required waives a broader requirement for this scope.
Require conversation ID	Not set, Required, Not required	Not set	Same as above.
Source IPs	Any IP, Listed ranges only	Any IP	With Listed ranges only, add at least one range, for example 10.0.0.0/8.
Severity	Not set, Very low, Low, Medium, High, Critical, Very critical	Not set	Reported only.

Set at least one requirement. The policy name is generated from the scope.

Example

govern_production_identity_networkrequest

runs on request·priority 850

WhenRequest metadata . environmentisproduction

Then

Require identity→true

Require conversation ID→true

Allowed source IP ranges→10.0.0.0/82001:db8:1200::/48

Scoping and precedence

• Applies to: Everyone, People, Smart group, Application, App tag, API surface, Environment, Prompt text, Tool, Source network, or Except.... Requested model and Provider are not offered.
• Require identity and Require conversation ID: the highest-priority matching configuration wins.
• Allowed source IPs ignore priority. Every matching configuration narrows the list: ranges intersect, the narrower of two overlapping ranges is kept, and ranges that do not overlap are dropped. If nothing survives, every matching request is denied.

Check overlapping IP lists

Two configurations with disjoint ranges (for example one app's office range and a tenant-wide VPN range) leave no allowed address, so the matching traffic is blocked.

Legacy app settings

• Source IP lists replace Source IP restrictions in Security Guardrails.
• Require identity overlaps with Enforce Identity in the app's Identity Aware settings. How identity is verified (headers, JWT, JWKS) is still configured per app there.
